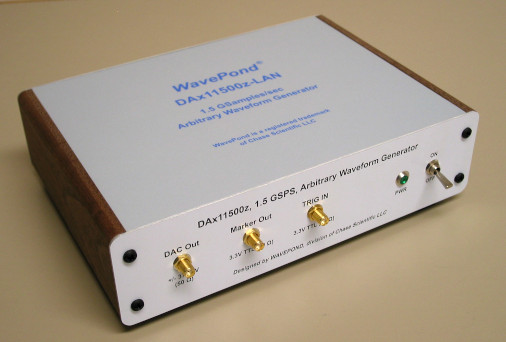

DAx11500z-USB3, 1.5 GS/sec, 9-bit Arbitrary Waveform Generator [ Ethernet Controlled ]
The DAx11500z-USB3 is an USB 3.0 controlled 1-CH, 1.5 GS/sec, 9-bit Arbitrary Waveform Generator. It has a programmable clock source that covers 25 MS/sec to 1.5 GS/sec, 8K Samples Memory, internal / external triggering, and one marker output. See below manual and software tools.
Software Drivers and Documentation ==> (To Be Updated to USB3 by 9/16/24 -- almost identical to -LAN)
| File Name | Description |
|---|---|
| dax11500_usb3_ds.pdf | Data Sheet for LAN version of DAx11500. |
| DAx11500z-USB3_Quick_Start_Guide.pdf | Quick-Start Guide for LAN version of DAx11500. |
| dax11500z_lan_manual.pdf | User Manual for LAN version of DAx11500. |
| dax11500z-lan.zip | Script Editor for DAx11500z-LAN/USB3 (Win 10/11) |
dax11500z-lan-gui.zip
|

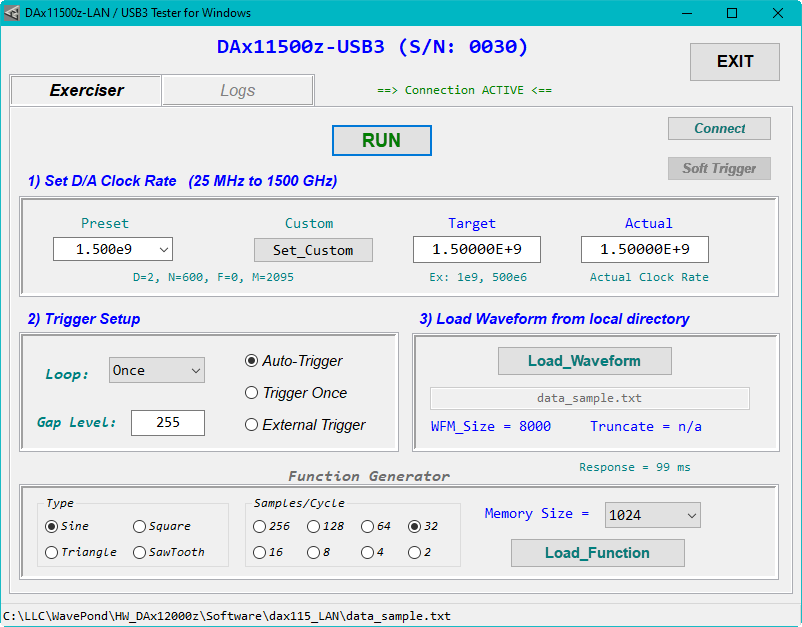

GUI Tester for DAx11500z-LAN/USB3, (Win 10/11) |
| dax11500_labview_vi.zip | LabVIEW VI |
| sine_fitter.zip | Sine Wave Fitter (Windows 10/11) |
